WorldPay Business Gateway 350 Payment Gateway

Register for WorldPay Account.

A.) WorldPay Credentials

In order to accept payments through WorldPay on your website, you must first register for a WorldPay Account here.

To Process payment with your WorldPay Merchant account, you need the following things.

  1. WorldPay Installation ID

Without the above Credentials, you will not be able to process live WorldPay Payments


B.) Setting Up and Testing the WorldPay Gateway

WorldPaySetup1 WorldPaySetup1 PatSaTECH

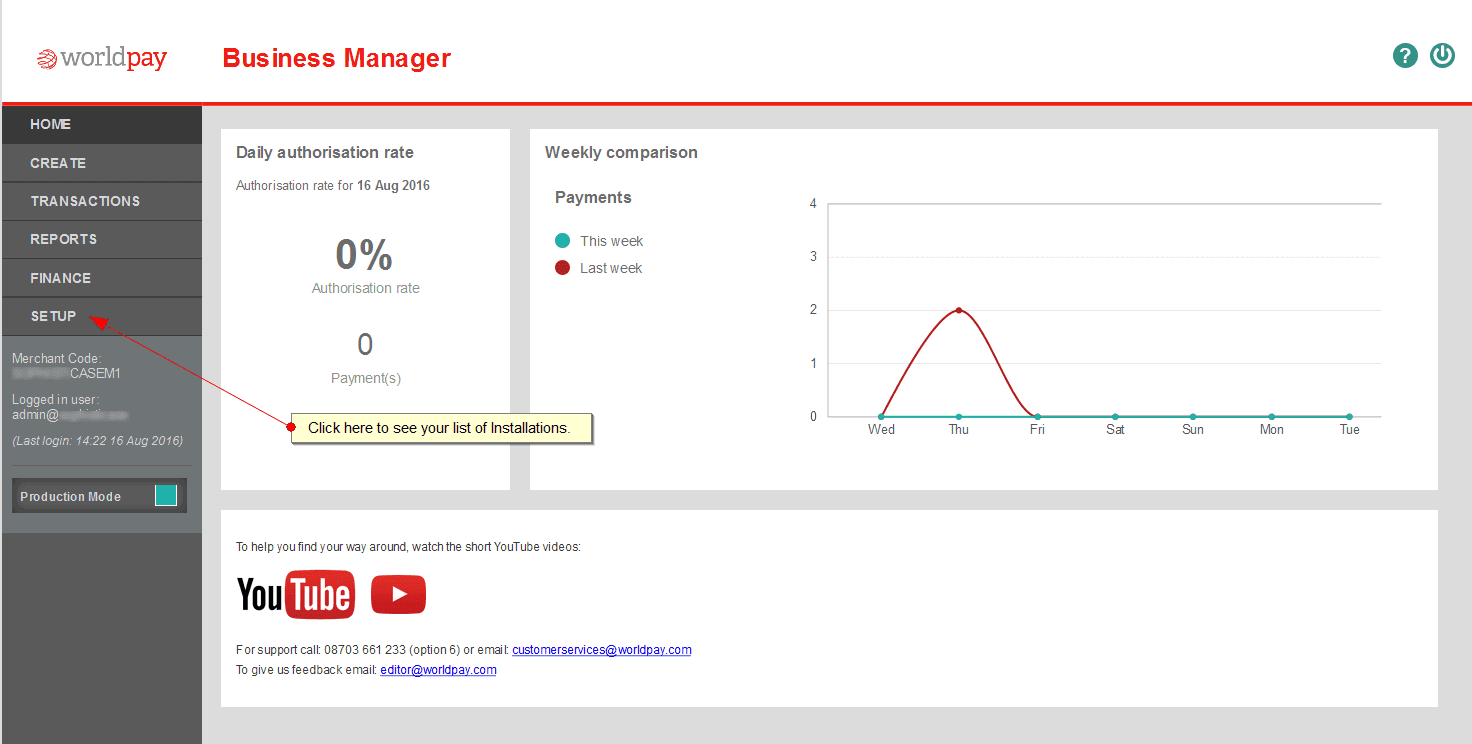

Login to your WorldPay Account. And click on Setup Tab at the Left Side

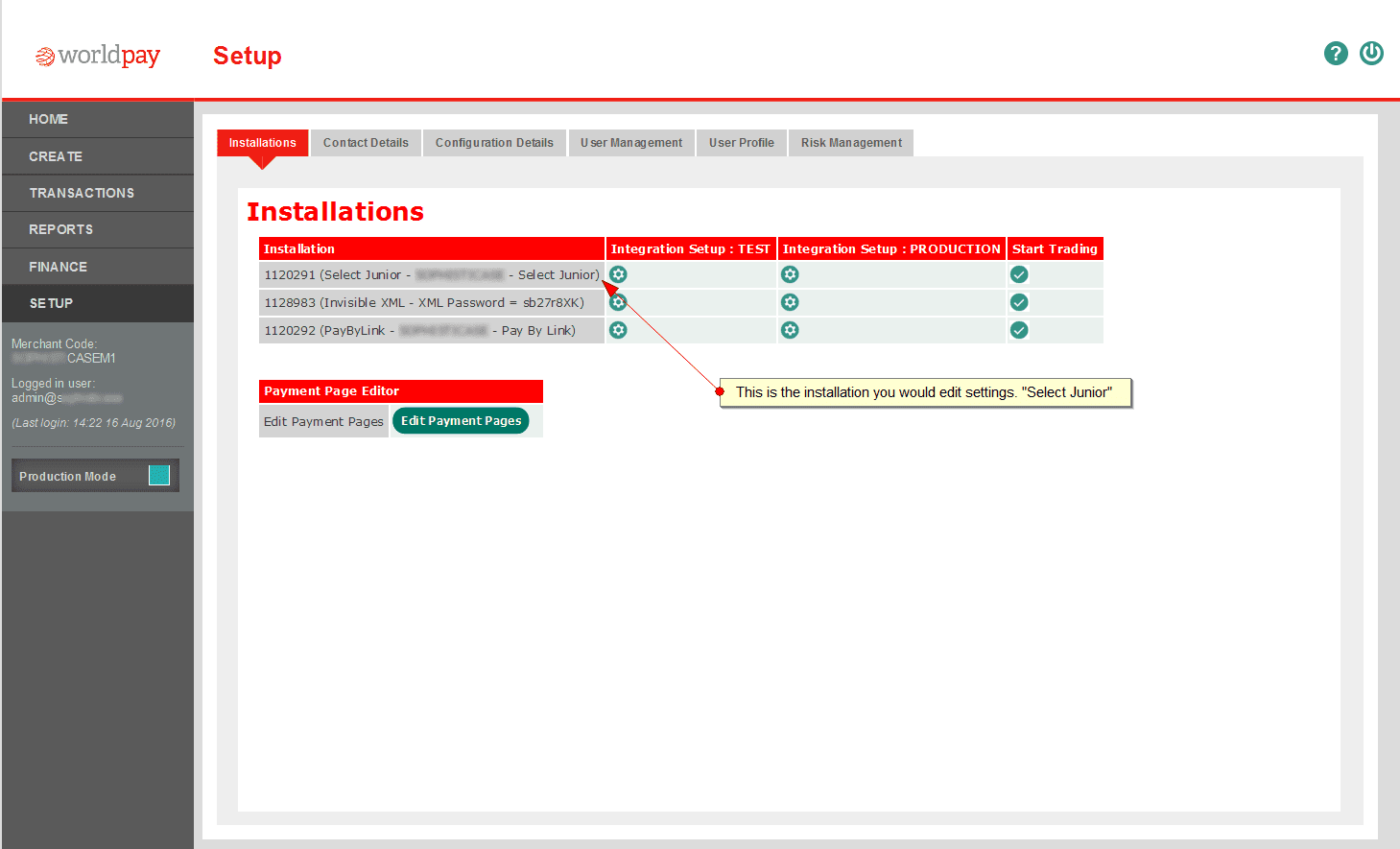

SetupPage Here you will see the list of the Installations available for your account PatSaTECH
Here you will see the list of the Installations available for your account. Click on the Settings Icon under Integration Setup: TEST

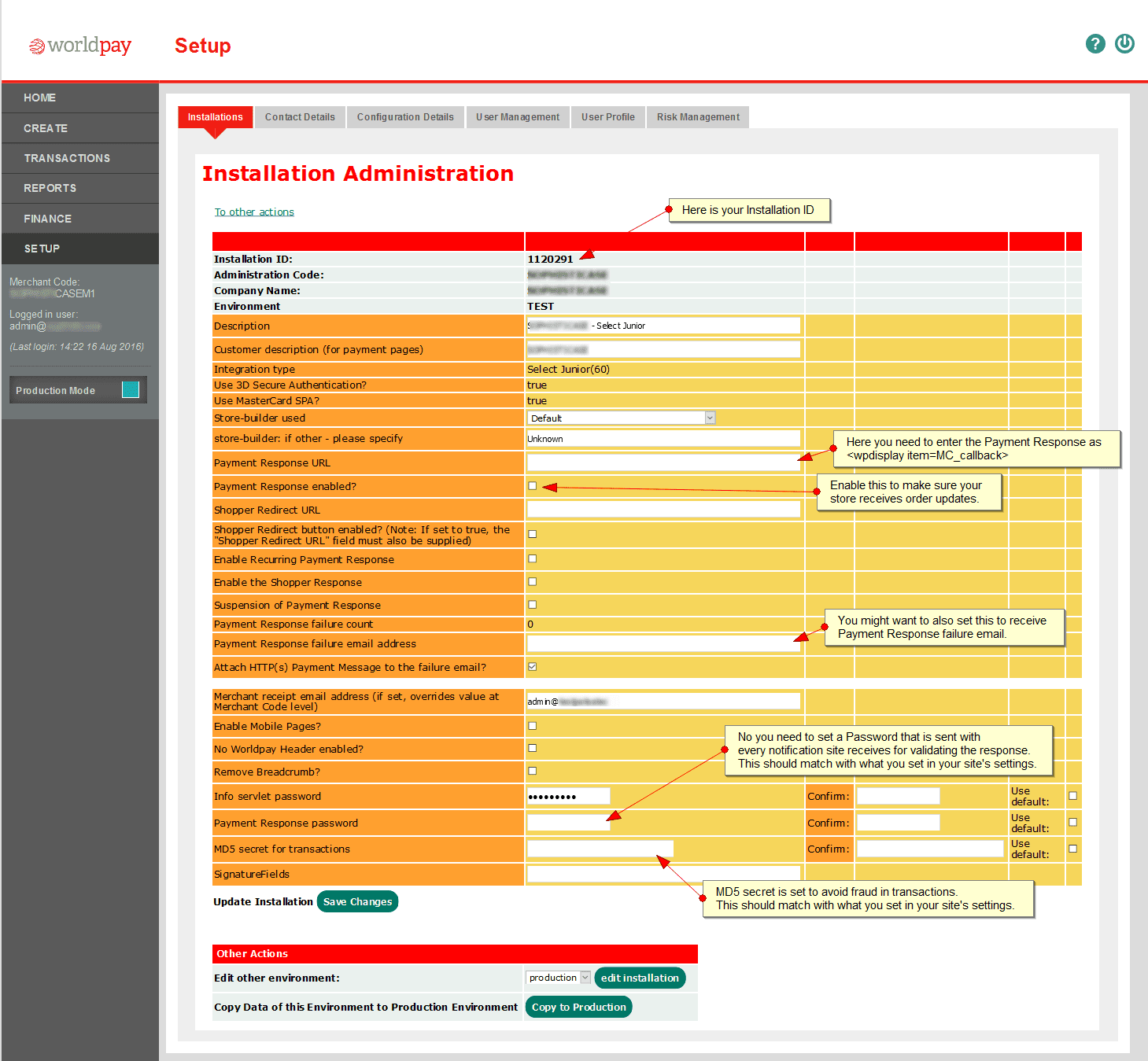

  • Here you will find the Installation Id and the settings that need to be filled before Testing the Gateway. Payment Response URL will be <wpdisplay item=MC_callback> On this page you also need to set the MD5 secret for transactions and Payment Response password.
InstallationSettings PatSaTECH
  • Below are step to add the files required for successful redirection back to the site to appropriate page depending on the status of the order.
EditPaymentPage EditPaymentPage PatSaTECH

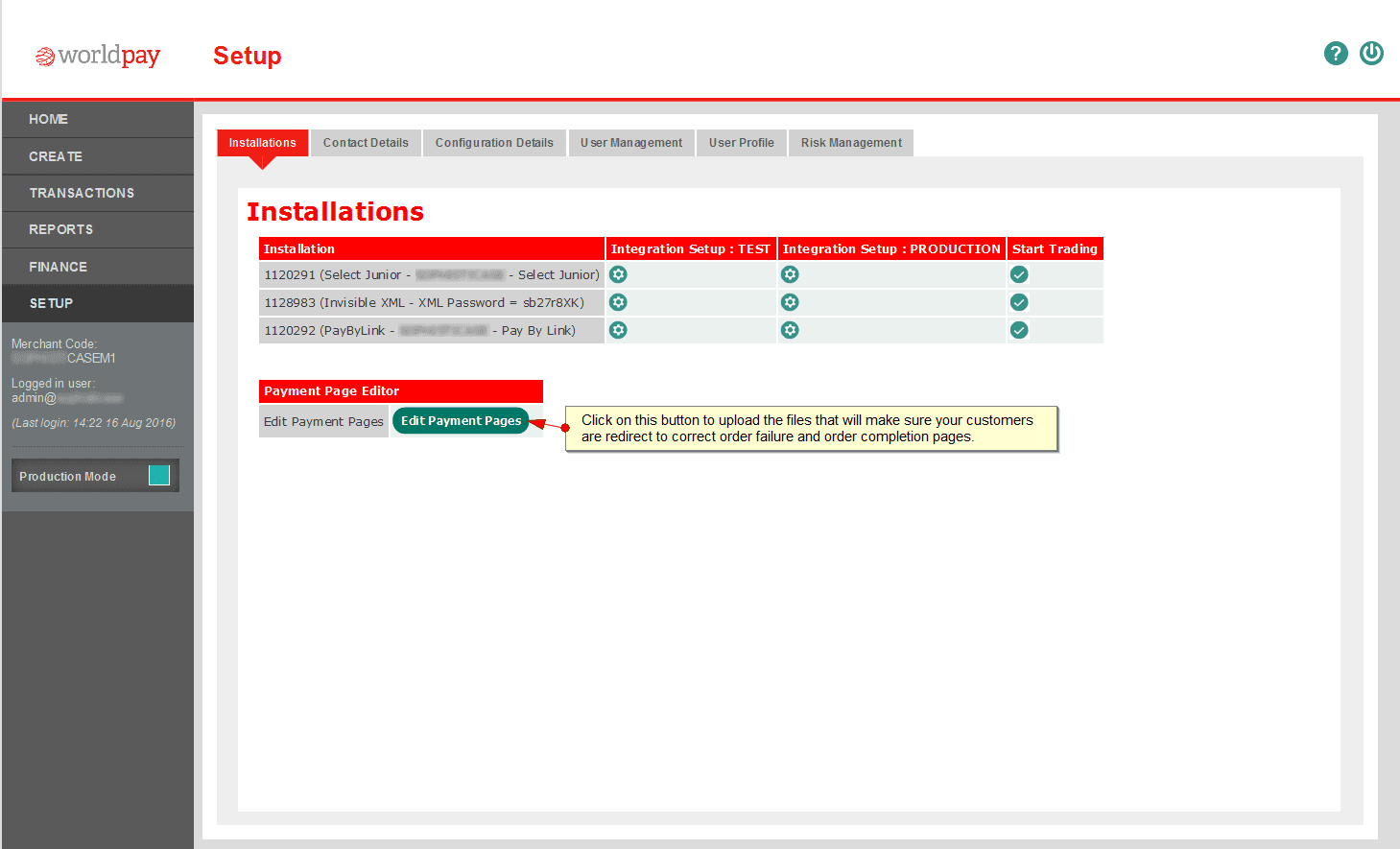

On the Installations Page Click on Edit Payment Pages under Payment Page Editor

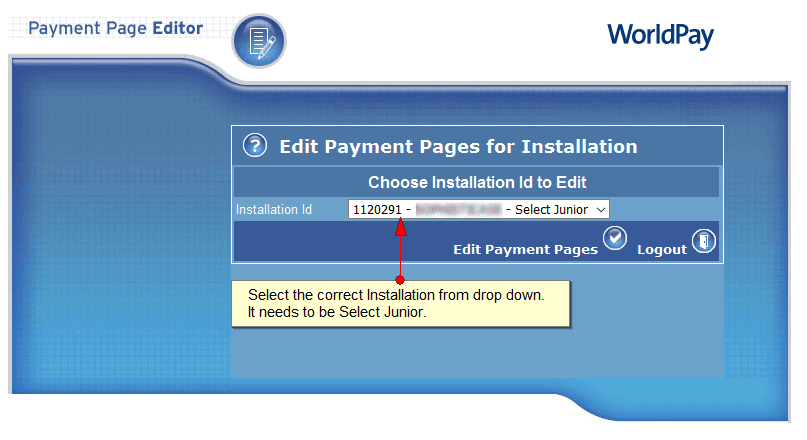

SelectInstallation worldpay SelectInstallation PatSaTECH
FileManagement FileManagement PatSaTECH

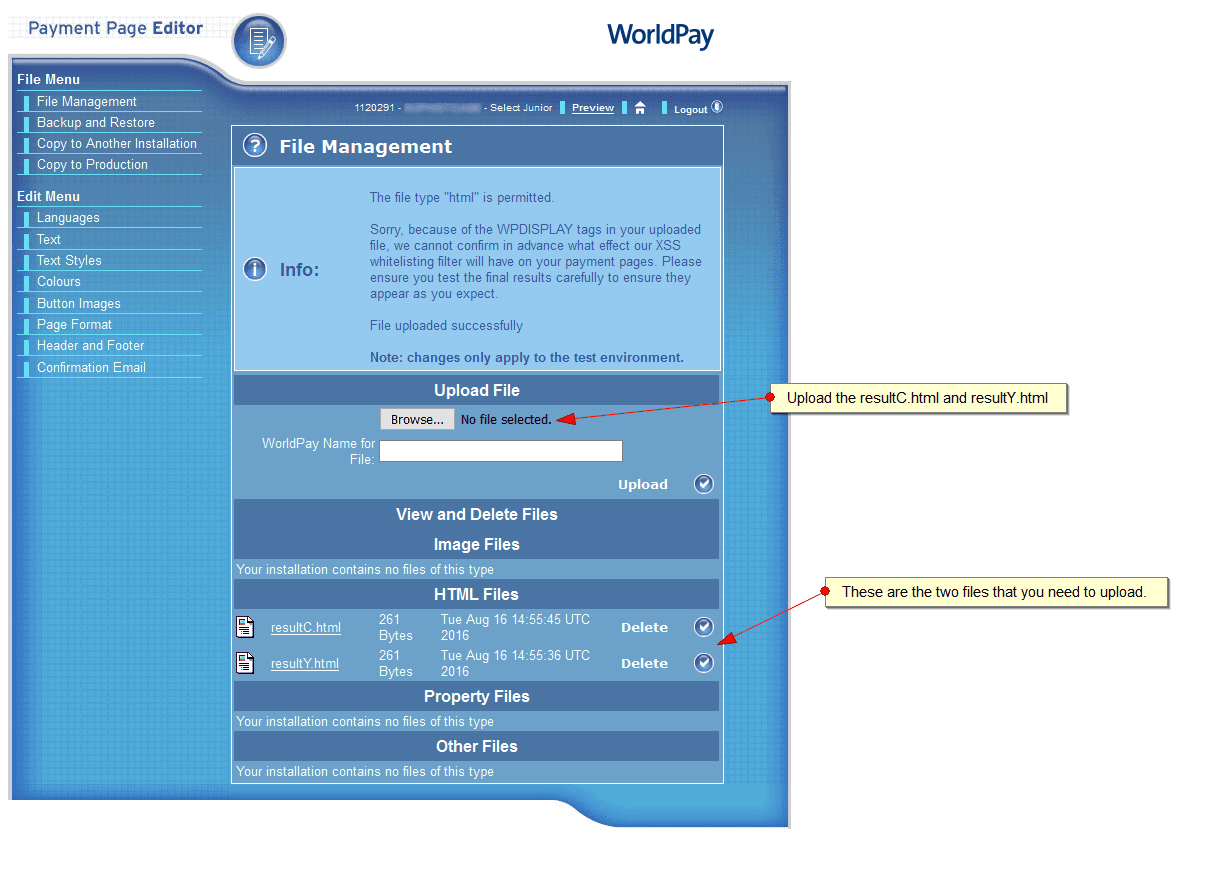

On Payment Page Editor screen select File Management
FileUploadPage FileUploadPage PatSaTECH
