Revolut Gateway for Gravity Forms

1. Overview

Revolut Gateway for Gravity Forms by PatSaTECH turns any Gravity Forms form into a Revolut Business checkout. When the form is submitted, the add-on creates a Revolut Merchant API order for the form total and sends the visitor to the secure Revolut Hosted Checkout Page, where they pay by card, Apple Pay, Google Pay or Revolut Pay (whichever Revolut enables on your account). Card data never touches your site.

It is built on the official Gravity Forms Payment Add-On Framework, so each entry gets its native payment status, transaction ID, notes and Sales report data. You paste one Secret API key; the webhook is registered for you. Notifications, post creation and other add-on feeds can wait until the payment is confirmed, and refunds are made from the entry screen.

2. Features

• Revolut Hosted Checkout Page
• Cards, Apple Pay, Google Pay, Revolut Pay
• Payment Add-On Framework
• Sandbox & Live keys
• Key checked on save
• Webhook registered automatically
• Signed webhooks (Revolut-Signature v1)
• Return-URL check with the API
• Amount & currency verification
• Per-entry lock: never paid twice
• Full & partial refunds from the entry
• Refund completion tracked
• Clear decline messages
• Unpaid entries marked Failed on a timer
• Delayed notifications & posts
• Post Payment Actions for other feeds
• Optional forced 3D Secure
• Phone numbers in E.164
• Debug log (no secrets logged)
• Translation-ready (.pot)

3. Requirements

Tested on: WordPress 7.1.3, Gravity Forms 2.10.3, Revolut Business sandbox, PHP 8.1.34 (LiteSpeed). Requires PHP 7.4 or later.

4. Installation

1. In WordPress admin go to Plugins → Add New → Upload Plugin.
2. Choose gravityforms-revolut-1.0.0.zip and click Install Now.
3. Activate Revolut Gateway for Gravity Forms. Gravity Forms must be active.

FTP: upload the gravityforms-revolut folder to /wp-content/plugins/ and activate it.

Step-by-step setup with screenshots

Click any screenshot to open it full size. Keys, Revolut order, payment and refund IDs, email addresses, phone numbers and IP addresses are blurred.

Part A: Revolut Business

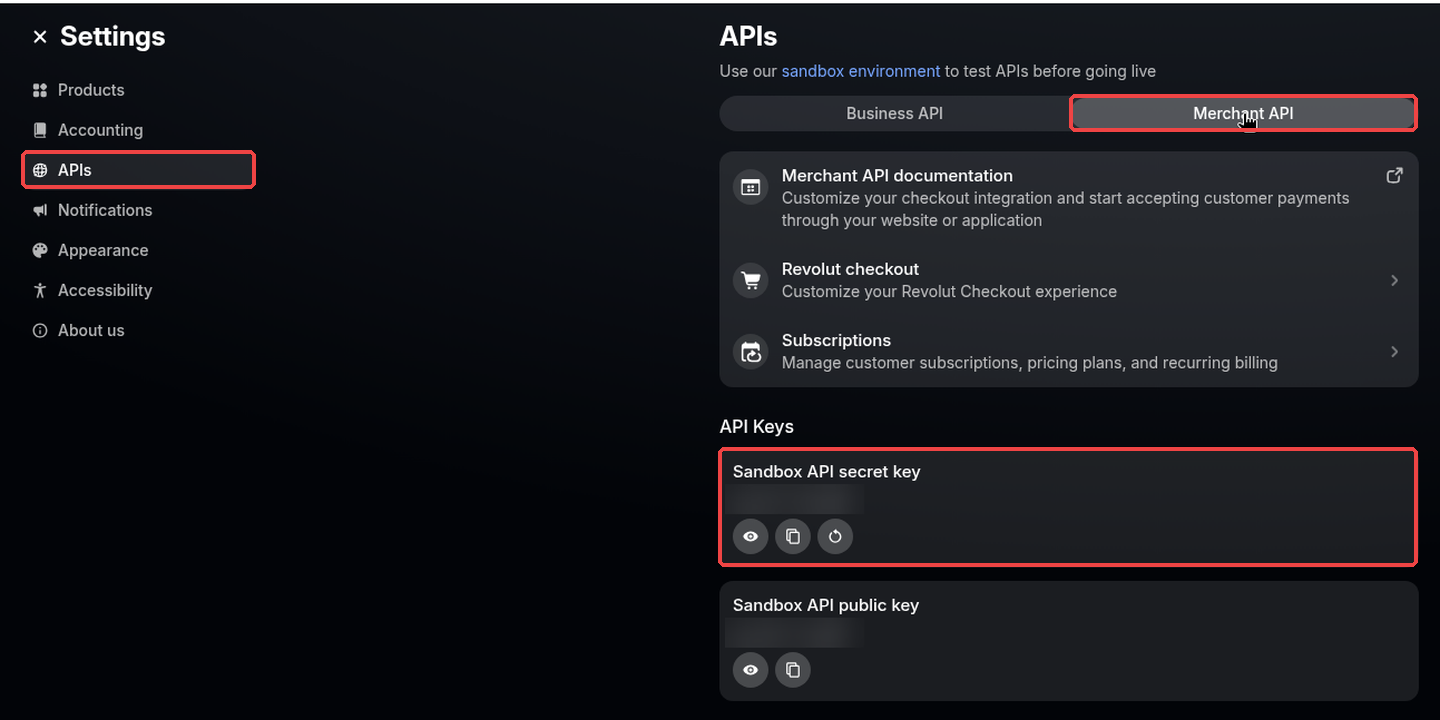

1. Copy your Secret API key

   In Revolut Business click your avatar → Settings → APIs → Merchant API tab and copy the API secret key (sk_…). For testing use the sandbox at sandbox-business.revolut.com. Full details: Getting your Revolut Secret API key.



Part B: WordPress / Gravity Forms

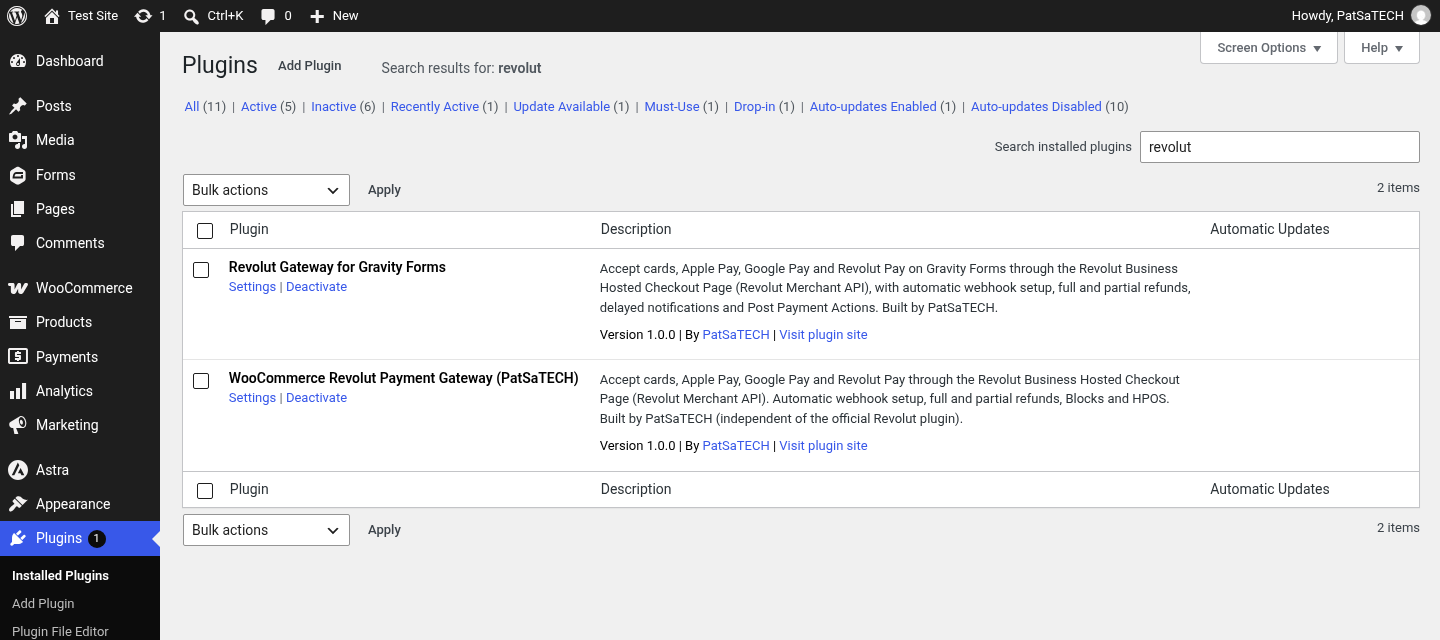

2. Activate the add-on

   Upload gravityforms-revolut-1.0.0.zip under Plugins → Add New → Upload Plugin and activate it.

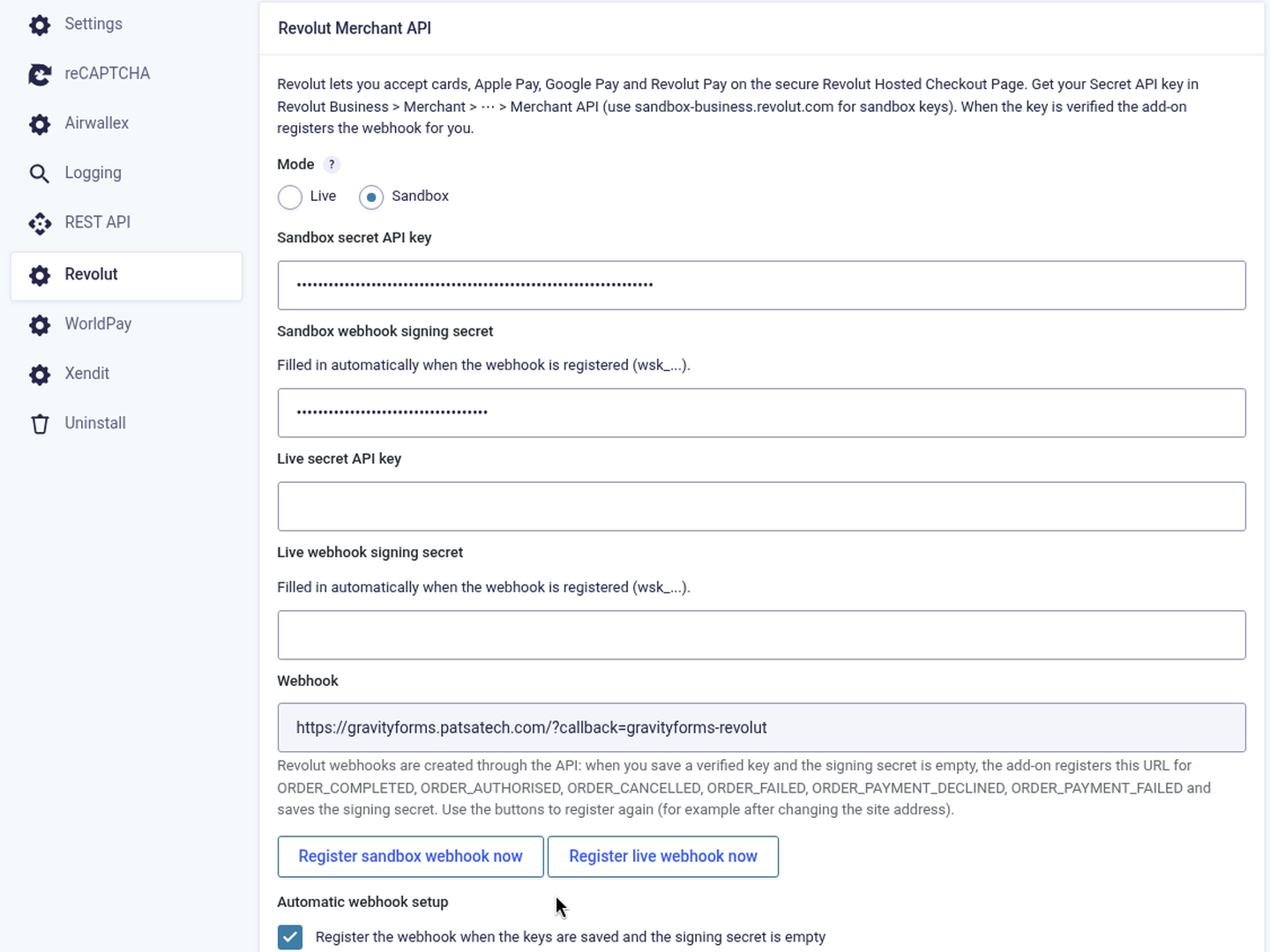

3. Paste your sandbox key and save

   Go to Forms → Settings → Revolut, choose Mode: Sandbox, paste the Sandbox secret API key and click Save Settings. Leave the signing secret empty: the add-on checks the key, registers the webhook (https://your-site.com/?callback=gravityforms-revolut) and fills in the signing secret.

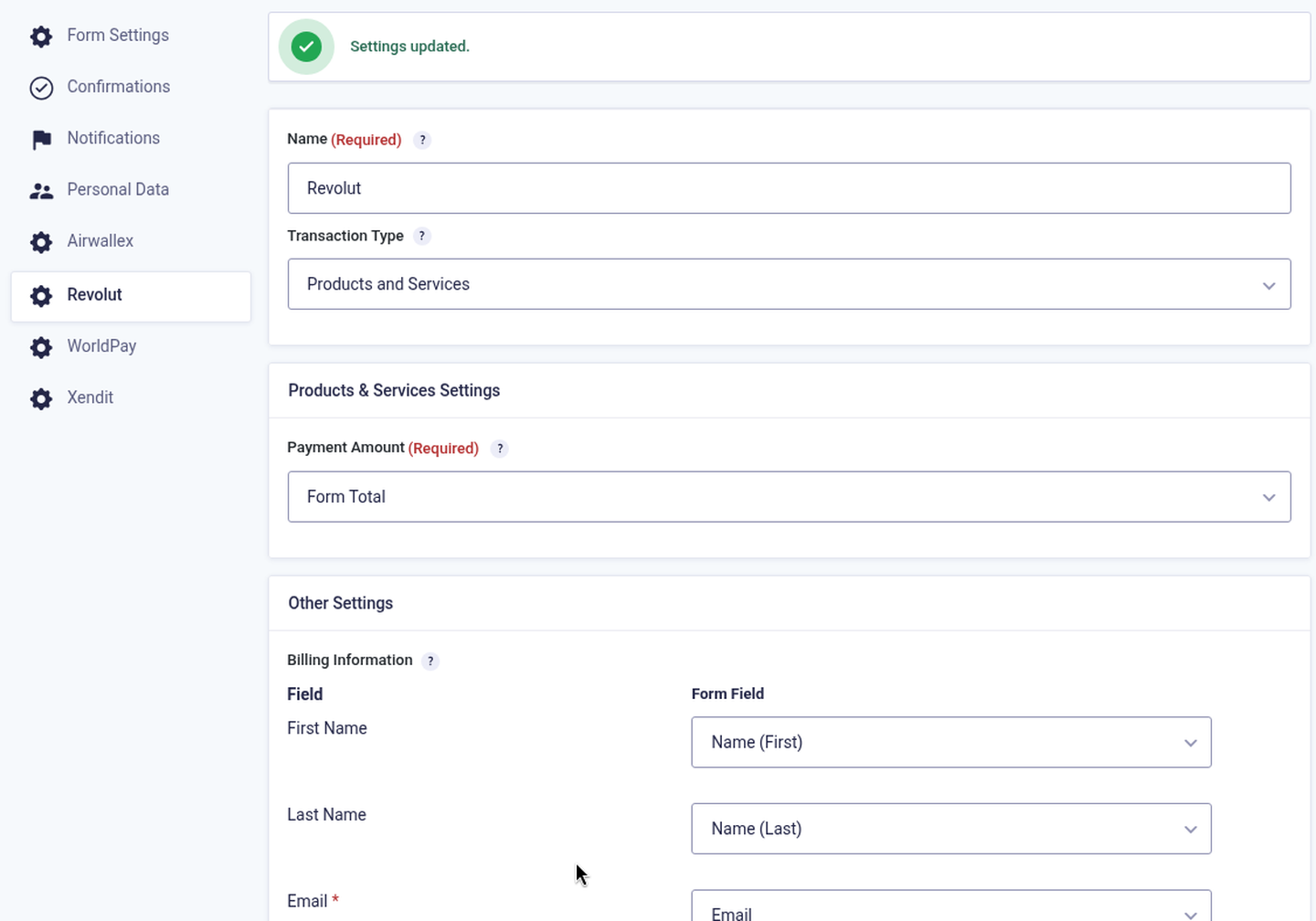

4. Create a Revolut feed

   Open your form, go to Settings → Revolut → Add New, set Transaction Type: Products and Services, choose the payment amount and map the billing fields (Email is required). See Creating a Revolut feed.



Part C: Test payment

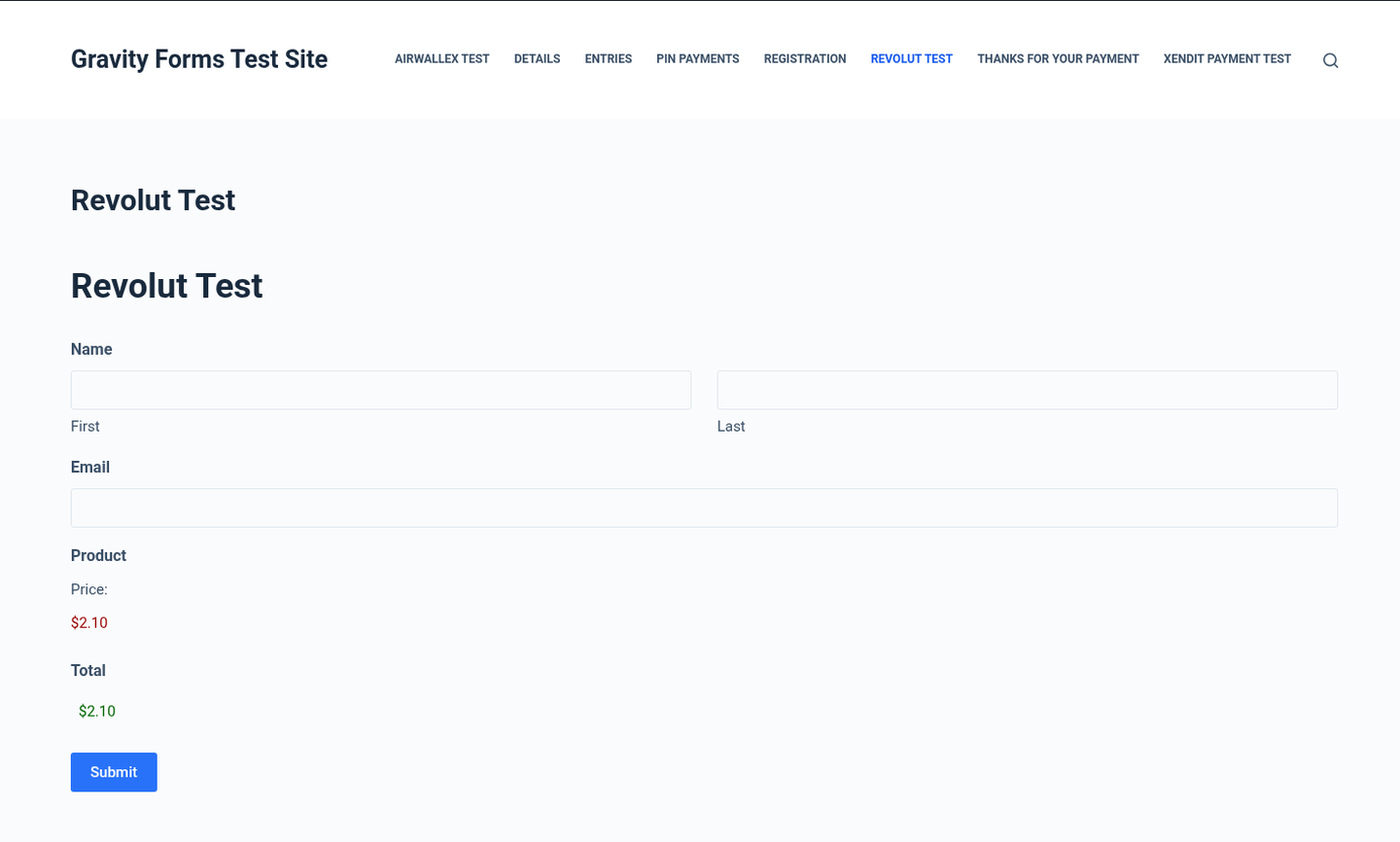

5. Submit the form

   Fill in and submit the form on the front end.

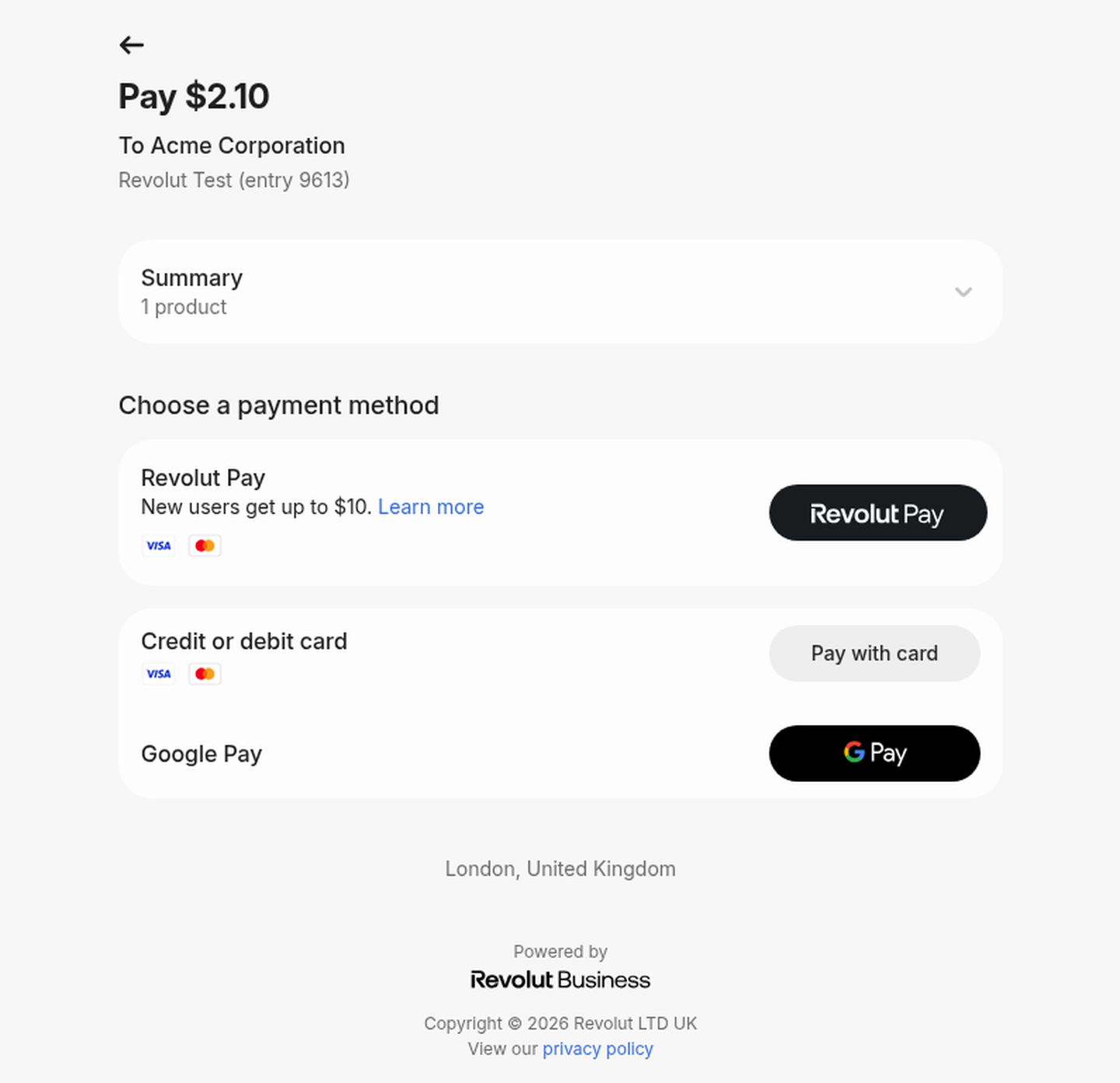

6. Pay on the Revolut Hosted Checkout Page

   The visitor is sent to Revolut’s page, which shows the amount and the methods enabled on your account. In the sandbox pay by card with 4929 4205 7359 5709, any future expiry and any CVC.

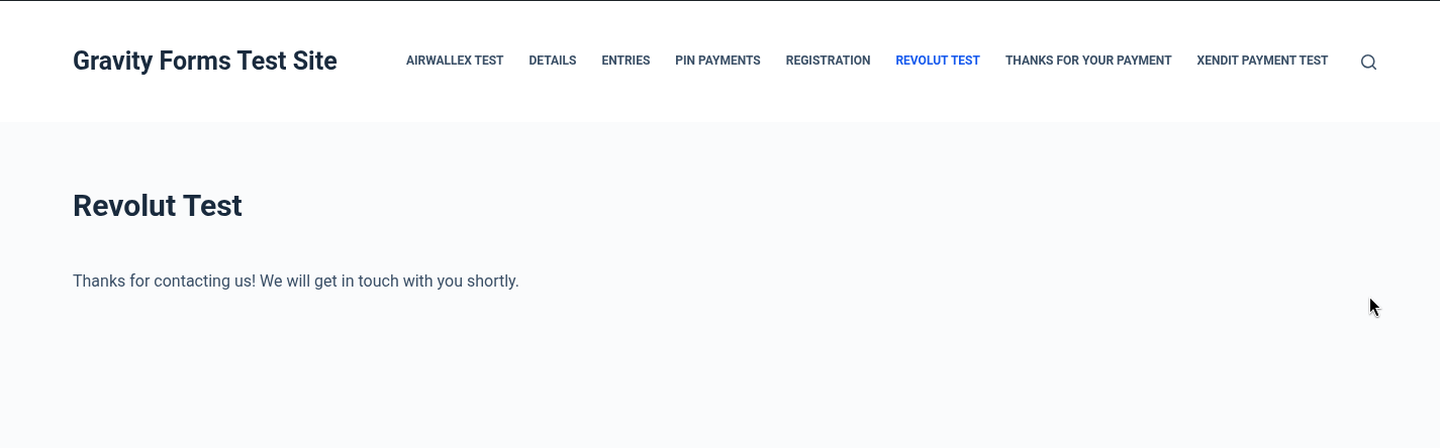

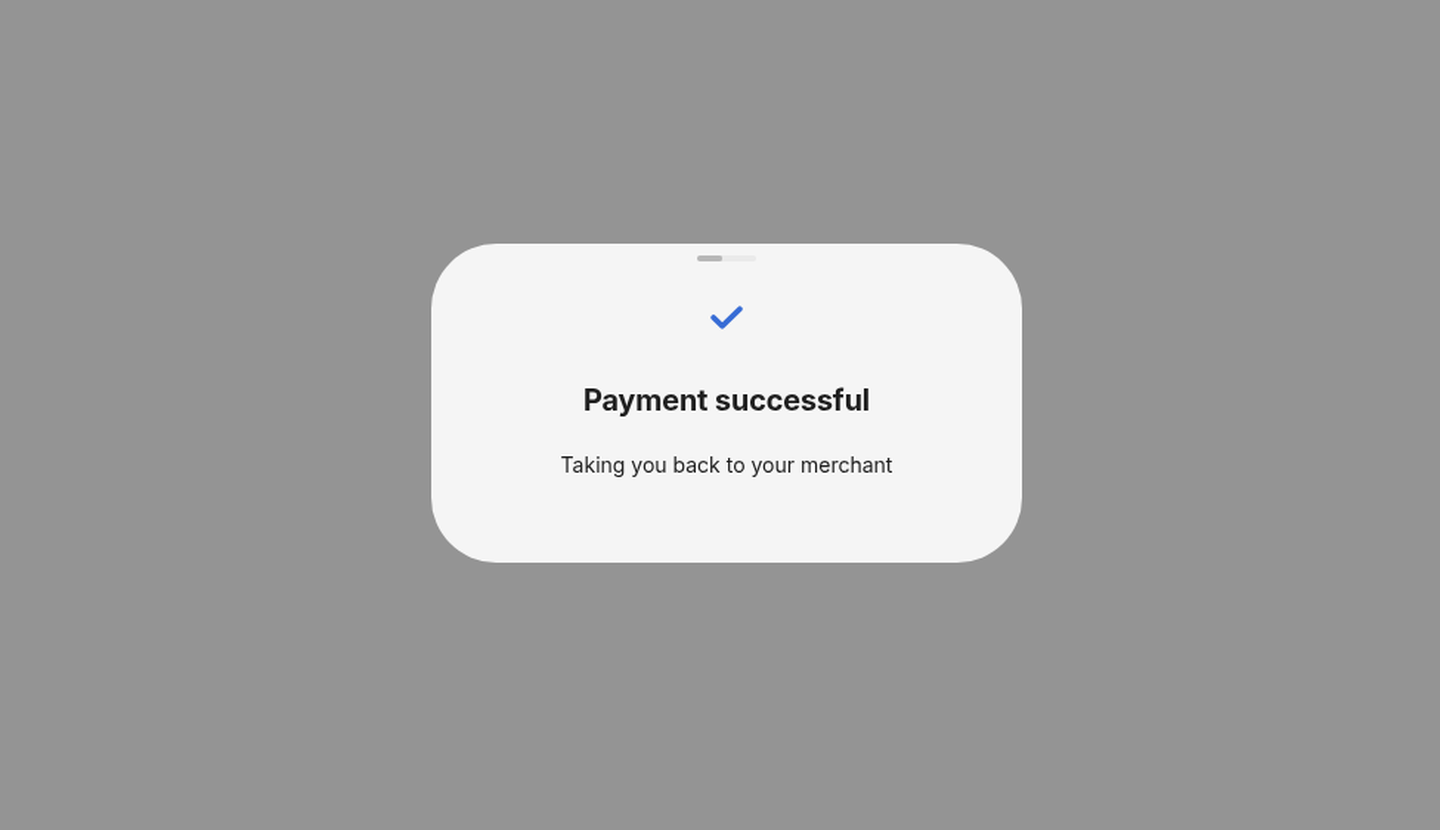

7. Confirmation

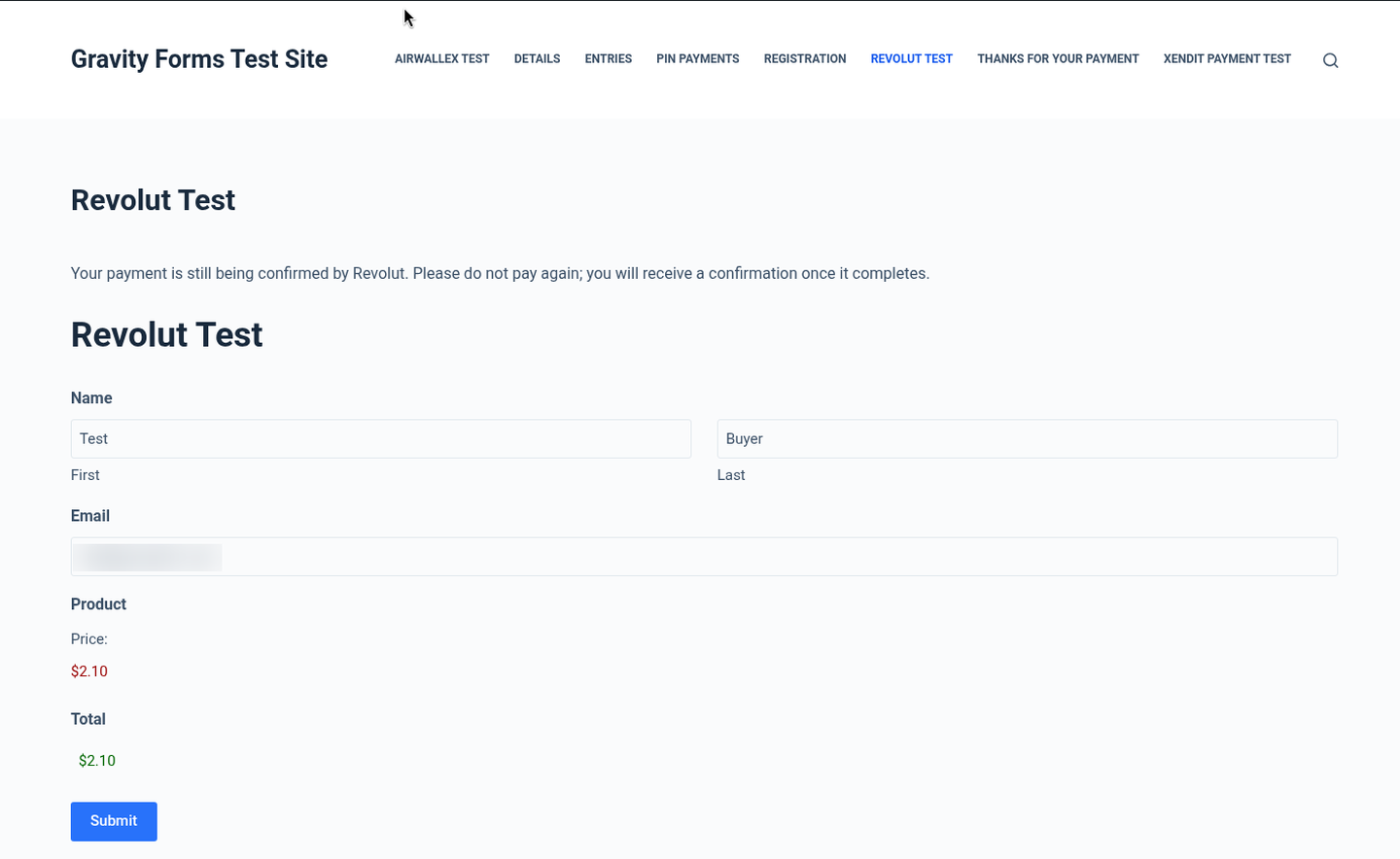

   The visitor returns to your form’s confirmation. If Revolut is still confirming the payment, they see “Your payment is being confirmed by Revolut” instead.

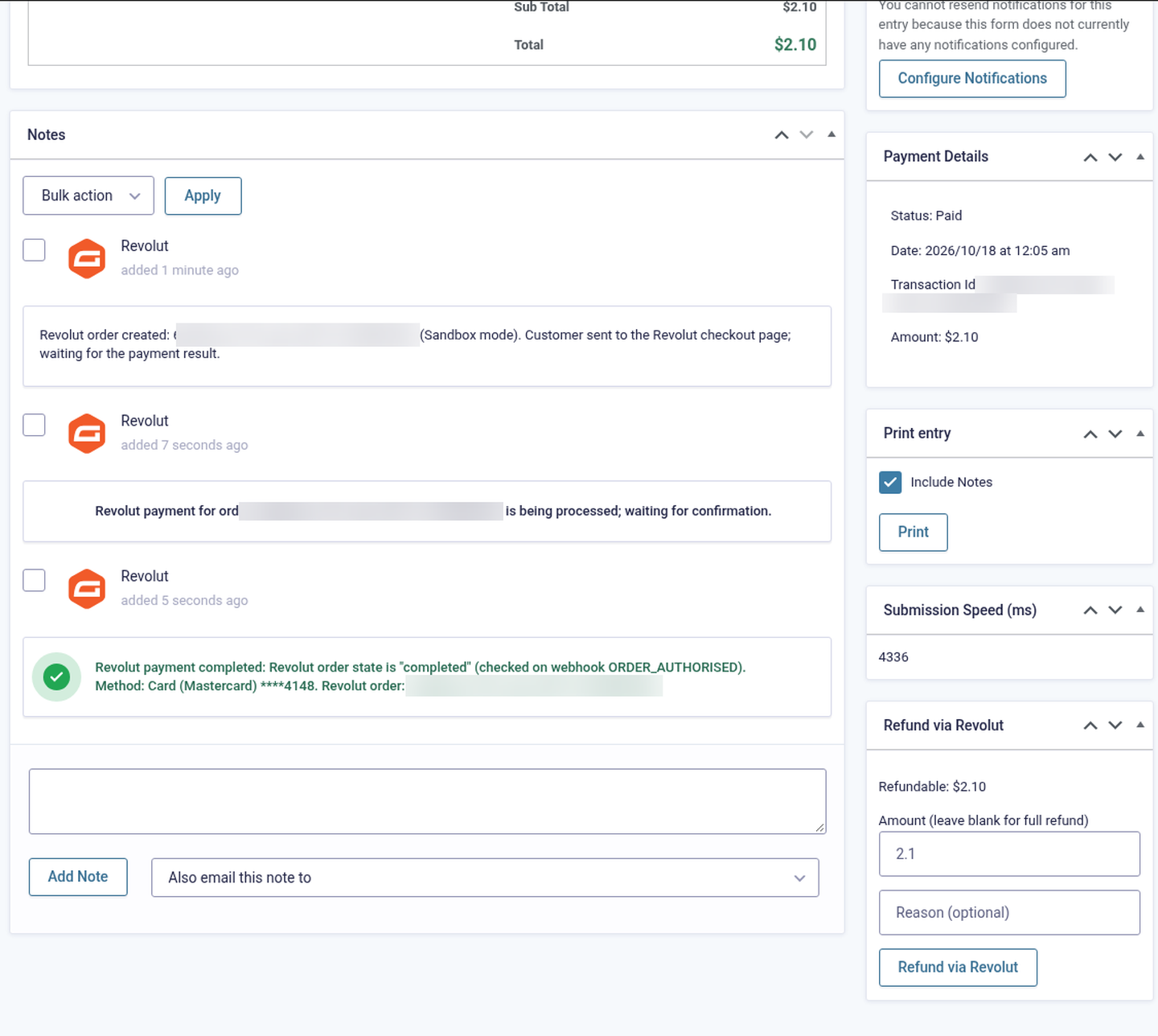

8. Entry is marked Paid

   The entry’s Payment Status becomes Paid, the Revolut order ID is the Transaction ID, and a note records the amount and method. Delayed notifications and feeds run now.



5. Getting your Revolut Secret API key

1. Sandbox (for testing): sign up for free at sandbox-business.revolut.com. The sandbox needs no real business verification and moves no real money (if it shows a “We need to confirm a few details” prompt, you do not need to complete it to get the sandbox API keys). Live: sign in to business.revolut.com; your Merchant account must be approved by Revolut first (see eligibility).
2. Click your avatar (profile picture) at the top right and choose Settings.



3. In Settings open APIs and select the Merchant API tab. Under API Keys you see the API secret key (it starts with sk_) and the API public key. Use the eye button to show the secret key or the copy button to copy it. You do not need the public key for this plugin.



4. Paste the key into the plugin’s Sandbox secret API key (or Live secret API key) field and save.
5. No webhook to create. Revolut Business has no webhook screen: the plugin registers the webhook through the Merchant API as soon as you save the key (see Webhooks). You can see it worked in the plugin: the message “Revolut Sandbox webhook registered for … and its signing secret saved.” (or “… already existed; its signing secret was saved.”), the webhook signing secret field filled in, and a line “Sandbox webhook … created for …” in the debug log.
6. Repeat in your live account at business.revolut.com when Revolut has approved your Merchant account (same Settings → APIs → Merchant API path; only the sandbox screens were captured for this guide). Sandbox and live keys are different and only work in their own environment.

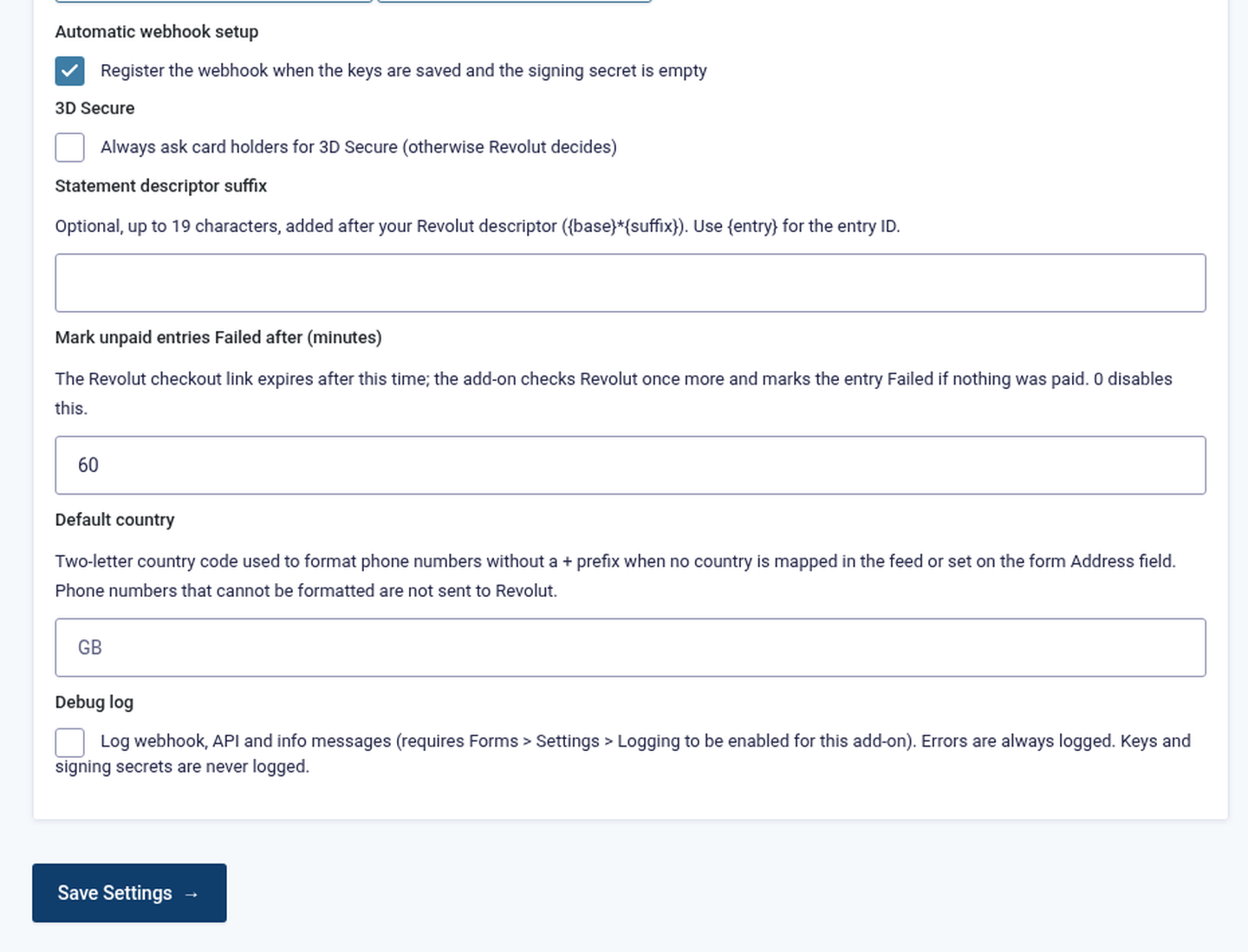

6. Plugin settings

Forms → Settings → Revolut

7. Webhooks (registered automatically, 6 events)

You do not need to create the webhook by hand (Revolut Business has no webhook screen). When you save a valid Secret key and the signing secret is empty, the add-on registers https://your-site.com/?callback=gravityforms-revolut in your Revolut Merchant account (or reuses a webhook that already points there, adding missing events) and saves the signing secret. Use the Register webhook now buttons to run it again.

8. Creating a Revolut feed

1. Edit the form → Settings → Revolut → Add New.
2. Name the feed and set Transaction Type to Products and Services (one-time payments; subscriptions are not supported).
3. Payment Amount: Form Total or a product field.
4. Billing Information: map First Name, Last Name, Email (required), Phone and Country (used to format the phone number).
5. Optional: Conditional Logic, and the delay options under Notifications & Post Payment Actions.
6. Save the feed.

9. Payment flow & entry statuses

The add-on checks each payment on return (waiting up to 8 seconds), on every webhook, 25 minutes after the redirect, and with an hourly clean-up (WP-Cron) for entries left Processing.

10. Transaction ID

The Revolut order ID is saved as the entry’s Transaction ID. Payment and refund IDs are in the entry notes. Search for them in Revolut Business under Merchant → Payments.

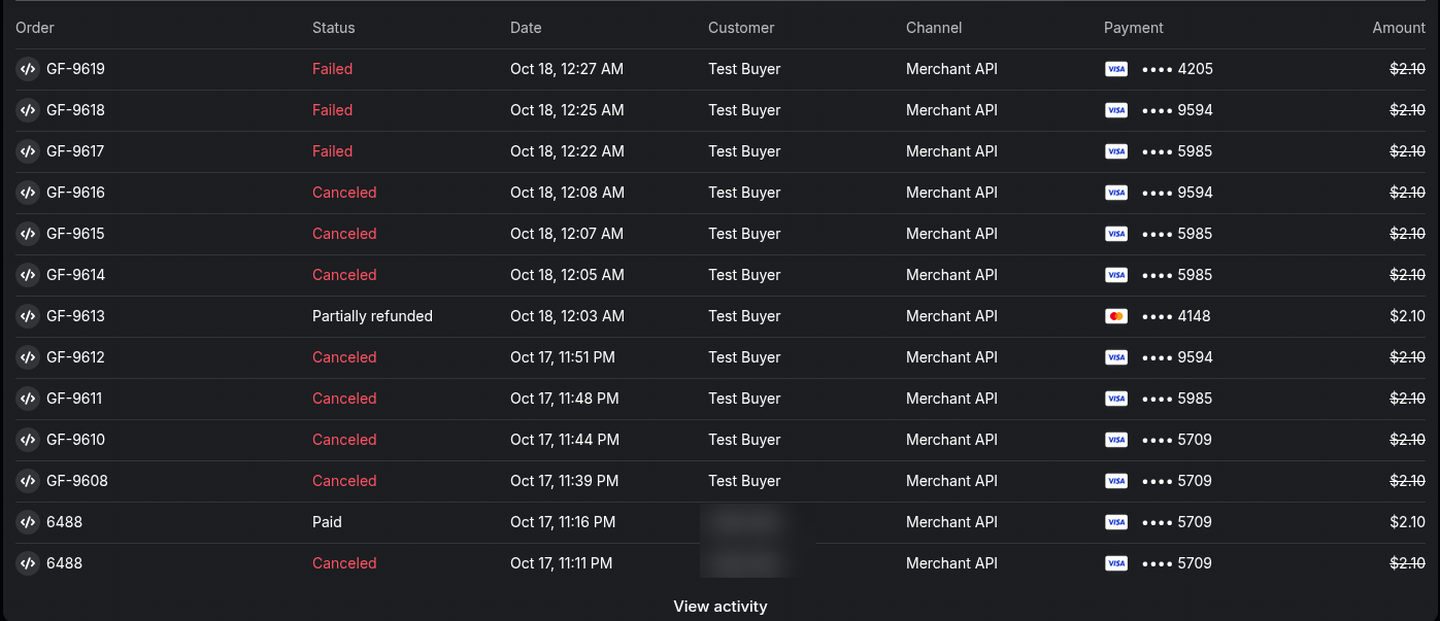

Finding the payment in Revolut Business

In Revolut Business open Merchant in the left menu. The orders list shows every Revolut order the plugin created, with its status (Paid, Failed, Canceled, Partially refunded…), customer, channel Merchant API, card and amount. Gravity Forms entries appear as GF-<entry ID> (for example GF-9613); the Revolut order ID is also the entry’s transaction ID.

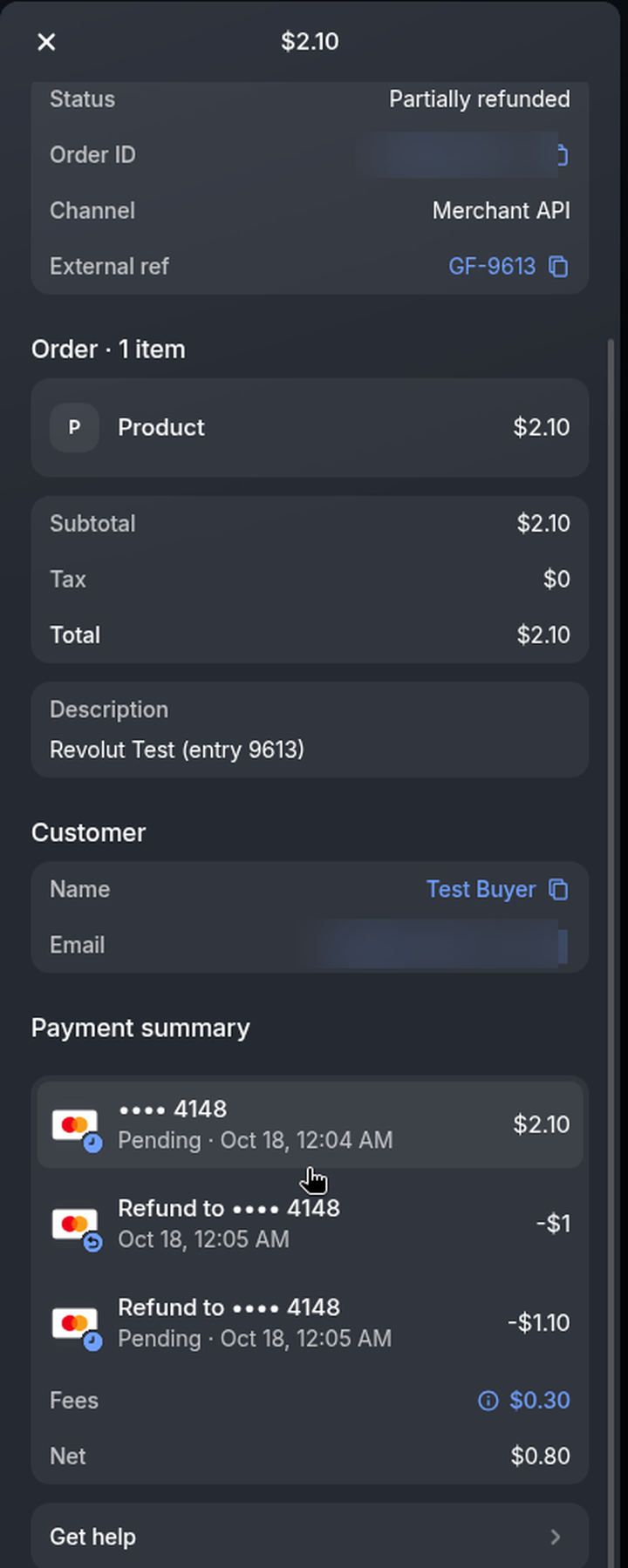

Click an order to see its details, line items, customer and the Payment summary with every refund.

11. Refunds

1. Open a Paid entry. The Refund via Revolut box shows the refundable balance.
2. Enter an amount (leave it blank for a full refund), an optional reason, and click Refund via Revolut.

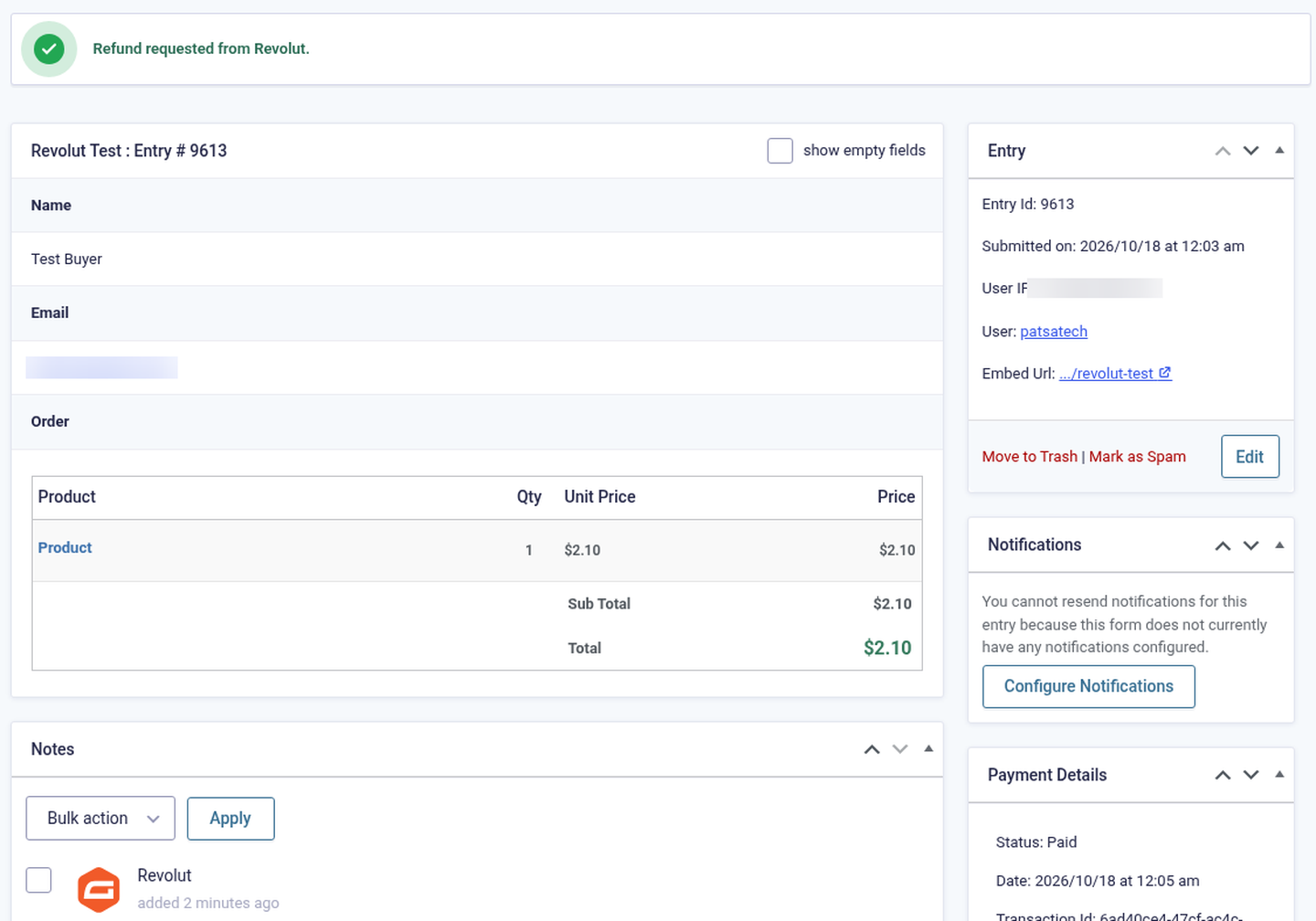

3. A note records the refund request. Revolut completes refunds in the background and sends no refund webhook, so the add-on checks each refund after 1, 1, 1, 2, 3, 5, 10, 30, 60, 360 and 1440 minutes and whenever you open the entry, then adds a “completed” (or failed) note.

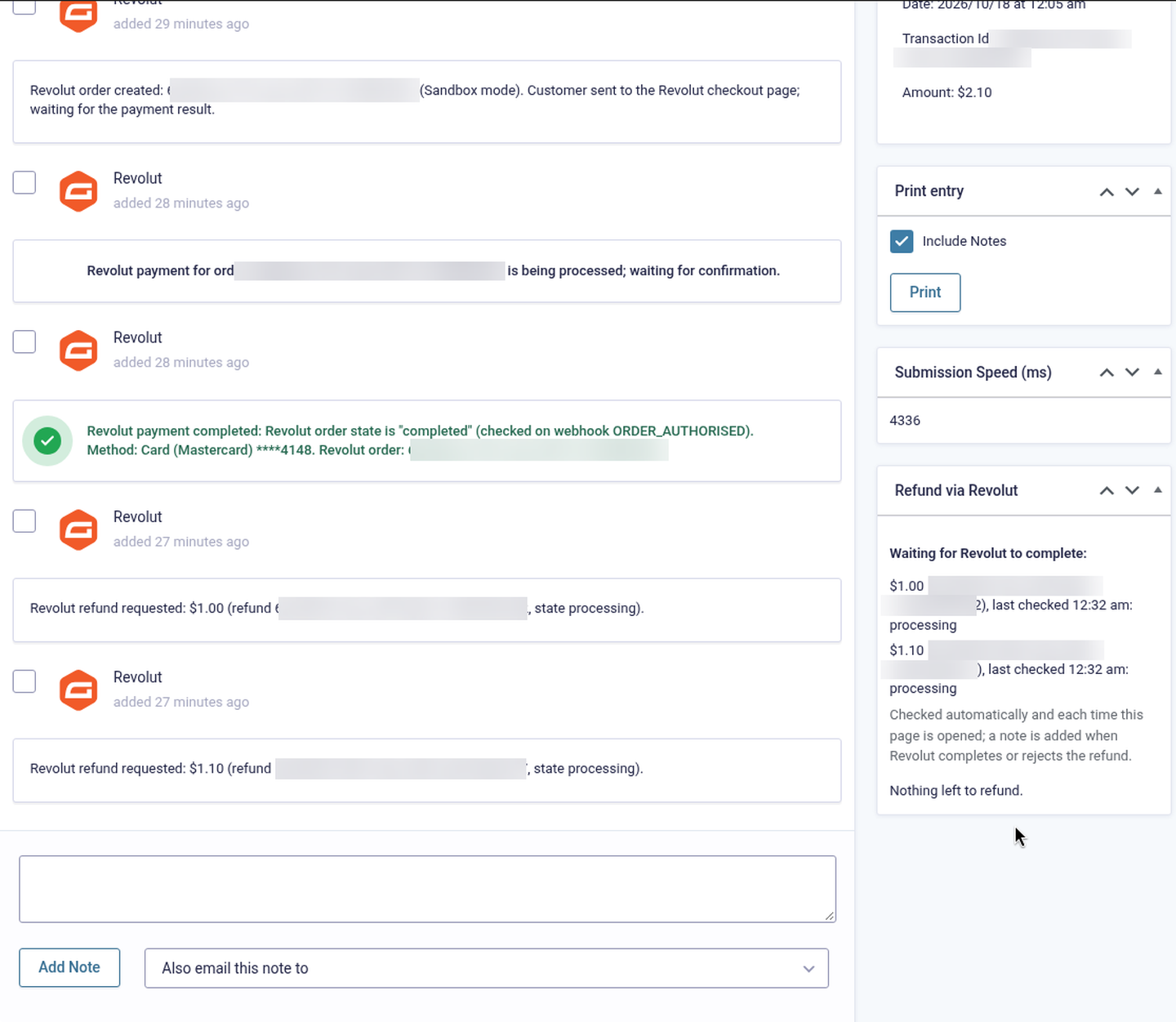

Refunds still waiting on Revolut are listed in the box, with the time of the last check, and count against the balance, so you cannot refund more than was paid. When completed refunds reach the paid amount, the entry becomes Refunded.

12. Pending, declined & expired payments

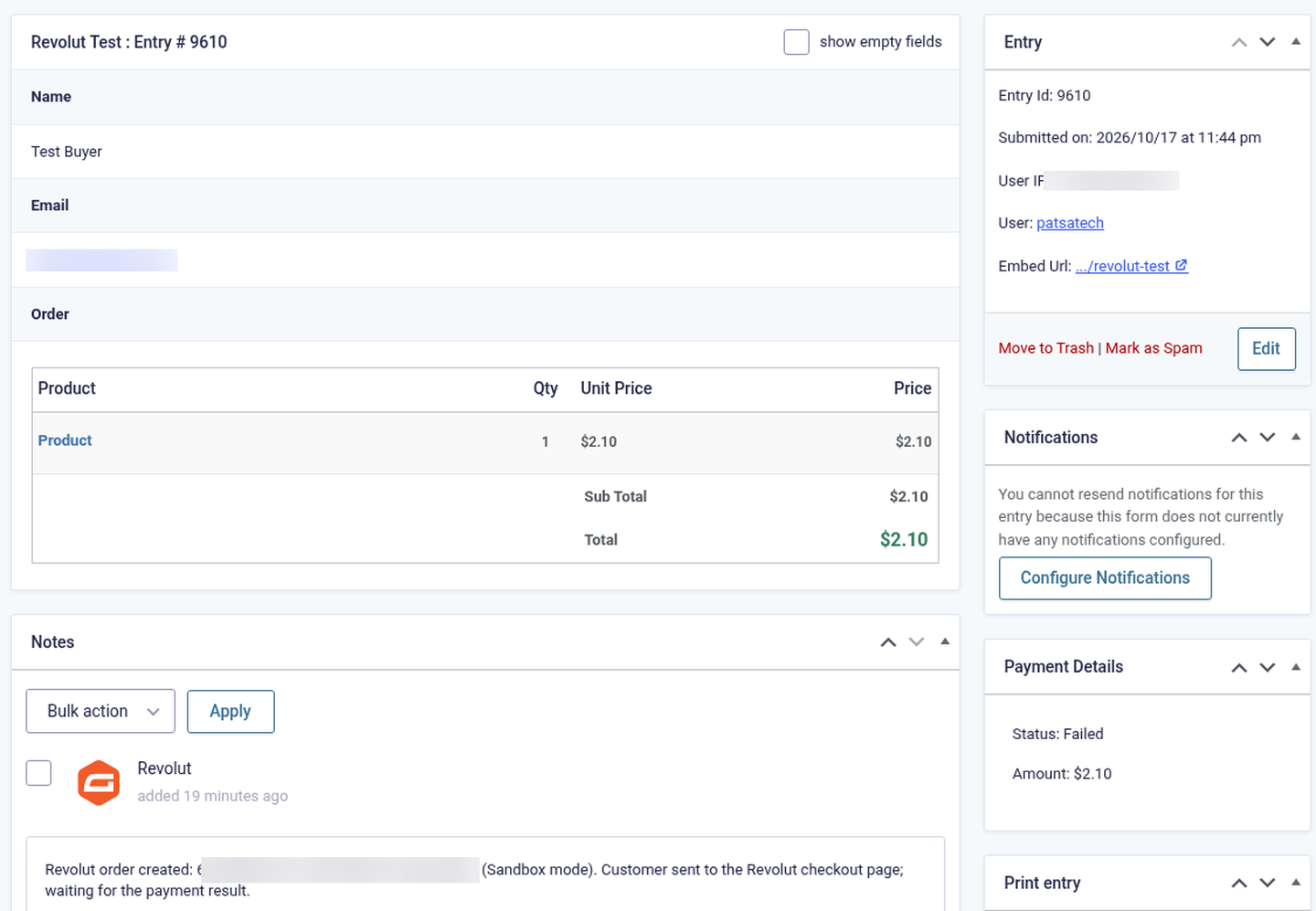

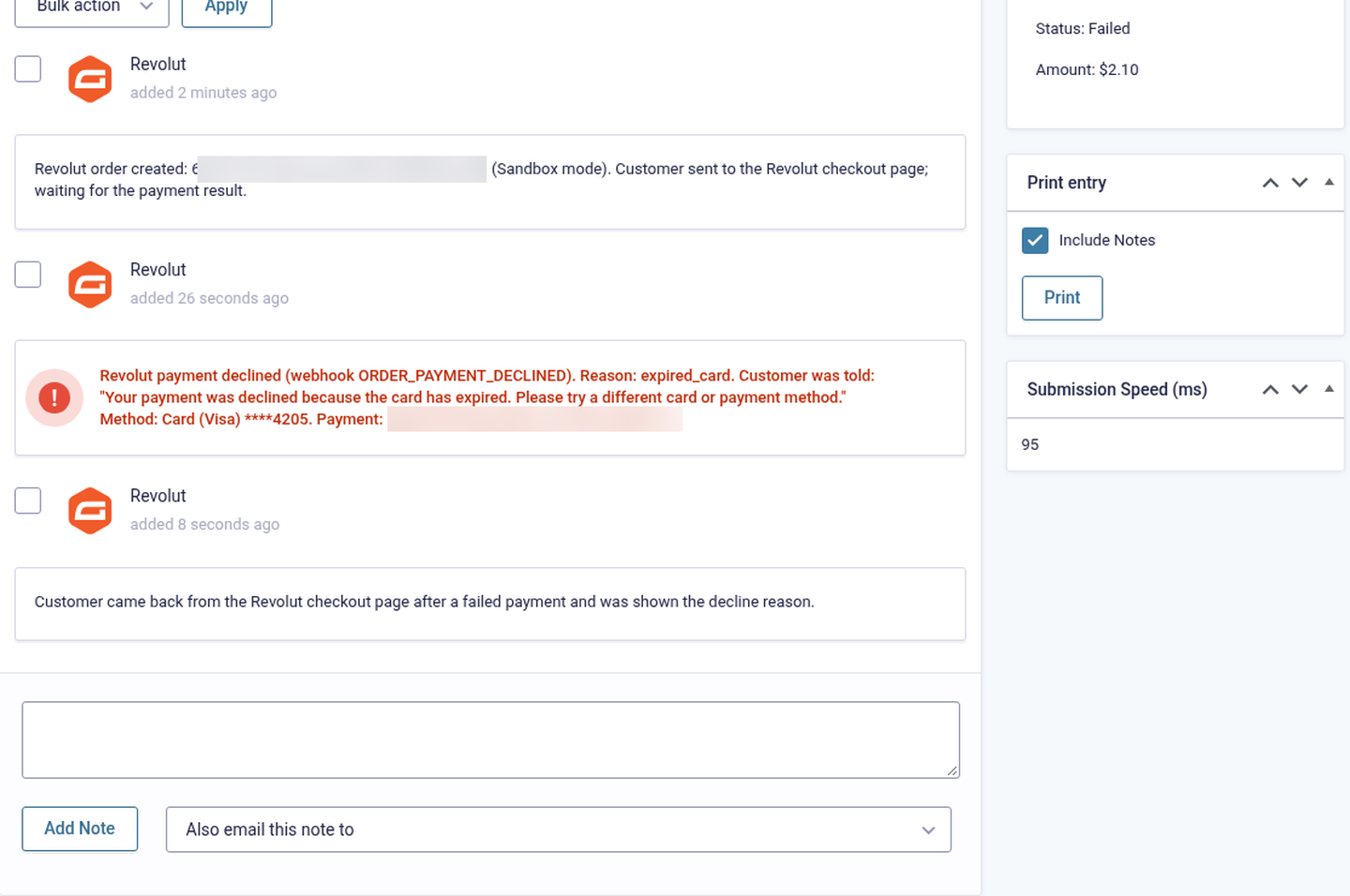

The Revolut page has no cancel button. A visitor whose card is declined can try another card on the Revolut page. If they come back to your form with the browser’s Back button, the add-on re-checks the payment and shows the reason above a fresh copy of the form: “… You can submit the form again to retry.”

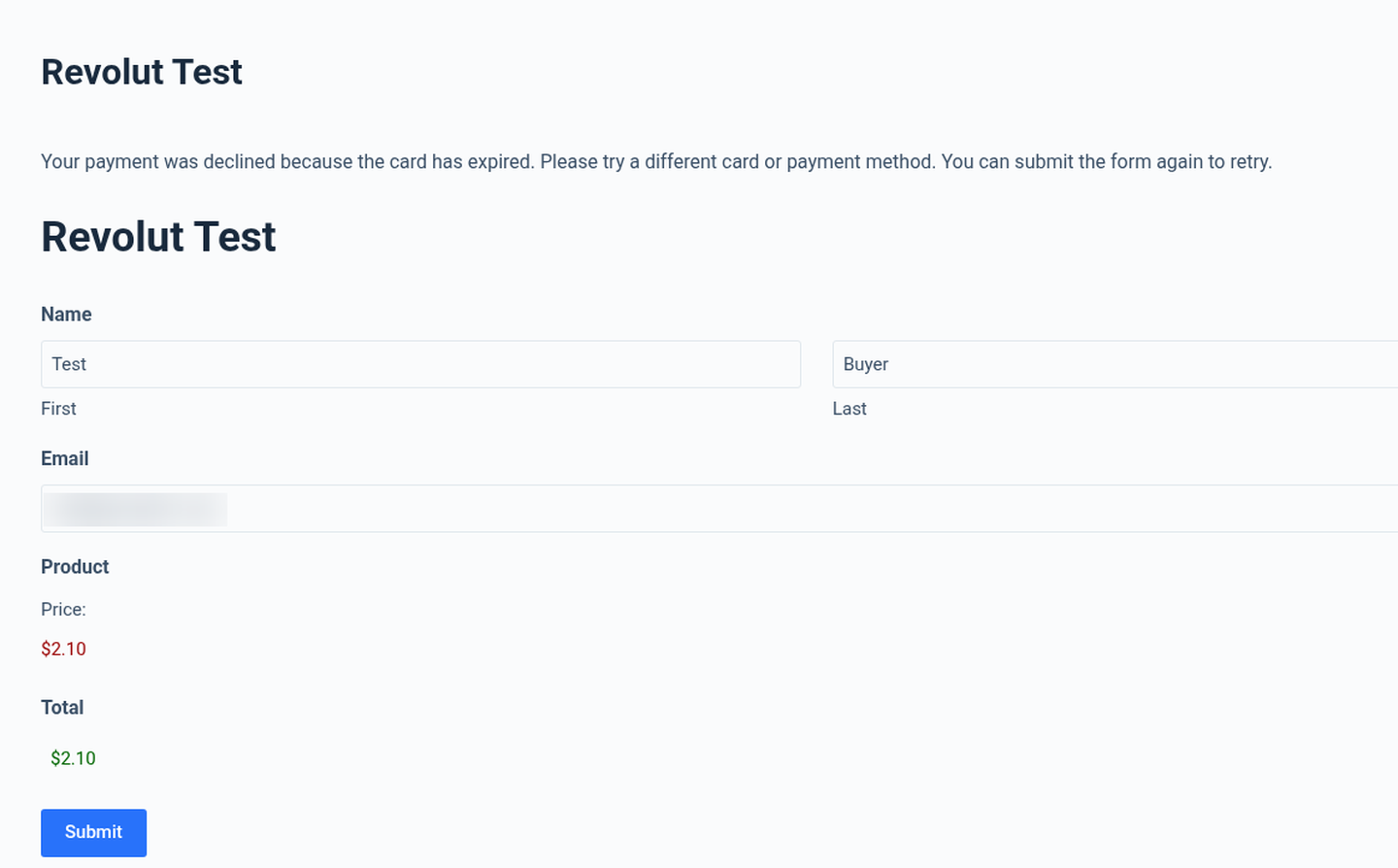

13. Decline messages customers see

Change any message with the gf_revolut_decline_message filter (message, Revolut payment, table key).

14. Testing with the Revolut sandbox (test cards)

Use any future expiry date (for example 12/30) and any 3-digit CVC. Card numbers are from Revolut’s sandbox test-card list.

• 3D Secure: Revolut has no dedicated 3D Secure success card. Tick Always ask card holders for 3D Secure in the settings to see the challenge.
• Revolut Pay (sandbox): the one-time codes 1001–1005 choose the scenario; the sandbox passcode is 124455 (from Revolut’s test-flow docs).
• Apple Pay is not available in the Revolut sandbox. Google Pay results in the sandbox depend on the amount (see Revolut’s test-flow docs).

15. Notifications & Post Payment Actions

• Notifications: tick Send notifications only when payment is received and choose which notifications wait. You can also use the Payment Completed, Payment Failed and Payment Refunded notification events.
• Post Payment Actions: Process [add-on] feed only when payment is received for other add-ons such as Mailchimp or User Registration.
• Posts: Create post only when payment is received.

16. Eligibility, currencies & payment methods

Who can get a Revolut Merchant account. According to Revolut’s help centre (checked October 2026), Merchant accounts are available only to Revolut Business accounts opened in: Australia, Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Singapore, Spain, Sweden and the United Kingdom. Revolut Business customers in Switzerland, the United States and Liechtenstein cannot open a Merchant account, and businesses in other countries (for example India) are not eligible. To accept payments through the API or a plugin, Revolut also requires a fully working website. Revolut’s limit is £50,000 (or equivalent) per transaction.

Currencies. Cards, Apple Pay and Google Pay: AUD CAD CHF CZK DKK EUR GBP HKD HUF ILS JPY MXN NOK NZD PLN RON SEK SGD TRY USD ZAR (21 currencies). Revolut Pay additionally accepts AED CLP COP INR ISK KRW PHP QAR RSD SAR THB. The plugin sends amounts in each currency’s minor units (JPY, ISK, CLP and KRW have no decimals).

Payment methods. The Revolut Hosted Checkout Page shows the methods Revolut enables on your Merchant account: cards (Visa, Mastercard and others), Apple Pay, Google Pay and Revolut Pay. The plugin cannot turn individual methods on or off; that is done by Revolut.

Set the form currency under Forms → Settings → Currency; it must be one Revolut accepts.

17. Debug logs

Enable Forms → Settings → Logging, turn on logging for Revolut Gateway for Gravity Forms, and tick Debug log in the Revolut settings. View the log from Forms → Settings → Logging. Errors and webhook receipts are always logged; keys and signing secrets are never logged.

18. Troubleshooting & FAQ

The key was rejected

Check the Mode matches the key (sandbox key with Sandbox), and that you copied the Secret key (sk_…), not the Public key.

The webhook could not be registered

The site must be reachable over HTTPS from the internet, and the account must have fewer than 10 webhooks. Revolut Business has no webhook screen; registration is confirmed by the success message in the settings, the filled-in signing secret and the add-on log.

Paid in Revolut but the entry is still Processing

Check the signing secret is filled in (or click Register webhook now), that a firewall is not blocking /?callback=gravityforms-revolut, and that WP-Cron runs. Open the entry to trigger a check; see the log.

A refund has no “completed” note

Revolut has not completed it yet. The box shows the last check; open the entry later.

Subscriptions?

No. One-time payments (Products and Services) only.

Can I hide the “Get $10 by joining Revolut” box?

No. It is Revolut’s promotion on its hosted page.

19. Tested on

• WordPress 7.1.3
• Gravity Forms 2.10.3
• PHP 8.1.34 (LiteSpeed server); PHP 7.4 or later required
• Revolut Business sandbox Merchant account, USD entries. Live payments and Apple Pay not yet tested.
• Scenarios: card payment, automatic webhook registration, signed webhooks, declined card with decline message, partial refunds with refund tracking, unpaid entries marked Failed

20. Changelog

1.0.0 — 2026-10-18

• Initial release on the Gravity Forms Payment Add-On Framework.
• Revolut Merchant API order + Hosted Checkout Page (cards, Apple Pay, Google Pay, Revolut Pay).
• Sandbox and live keys checked on save; webhook registered automatically (6 events).
• Signed webhooks; every change re-checked with the API under a per-entry lock.
• Clear decline messages; unpaid entries marked Failed on a timer; hourly clean-up.
• Full and partial refunds from the entry with completion tracking.
• Delayed notifications, posts and Post Payment Actions; E.164 phone numbers; debug logging (no secrets).

21. Support

PatSaTECH · [email protected] · www.patsatech.com

Please include your WordPress, Gravity Forms and PHP versions, the mode (sandbox or live) and the relevant log lines (never send your Secret key).
